Basic Info.
| Model NO. | DAZO |
| Species | GOST Motors |
| Casing Protection | Closed Type |
| Starting Mode | Direct on-line Starting |
| Brand | Changli |
| Frequency | 50Hz, 60Hz |
| Frame Size | 315-1120mm |
| Mounting | Im1001 |
| Duty Type | S1 |
| Cooling | IP23 |
| Installation Site | Indoor/Outdoor |
| Space Heater | Yes |
| Trademark | CHANGLI |
| HS Code | 8501530090 |
| Number of Stator | Three-Phase |
| Rotor Structure | Squirrel-Cage |
| Number of Poles | 2/4/6/8/10/12/14/16 |
| Certification | ISO9001, CE |
| Rated Power | up to 25000kw |
| Voltage | 3.3kv, 6kv, 6.6kv,10kv, 11kv, 13.8kv |
| Cooling Method | IC01 |
| Rotation Direction | Cw/Ccw |
| Insulation Class | F |
| Ambient Temperature | -20 up to 40 |
| Bearing Brand | SKF |
| Transport Package | Standard Seaworthy Packing |
| Origin | China |
| Production Capacity | 500000 |
Product Description
DAZO series high voltage motors are GOST standard motors for Russian market, they are used to drive Fan, Blower, Compressor, Pump, Crusher, Stock-removing, shedder and other general-purpose machinery. They can serve as the prime movers in power plants, steel, coal mines, mechanical industries etc.
Customization:Available
Application:Industrial, Universal
Operating Speed:Constant Speed

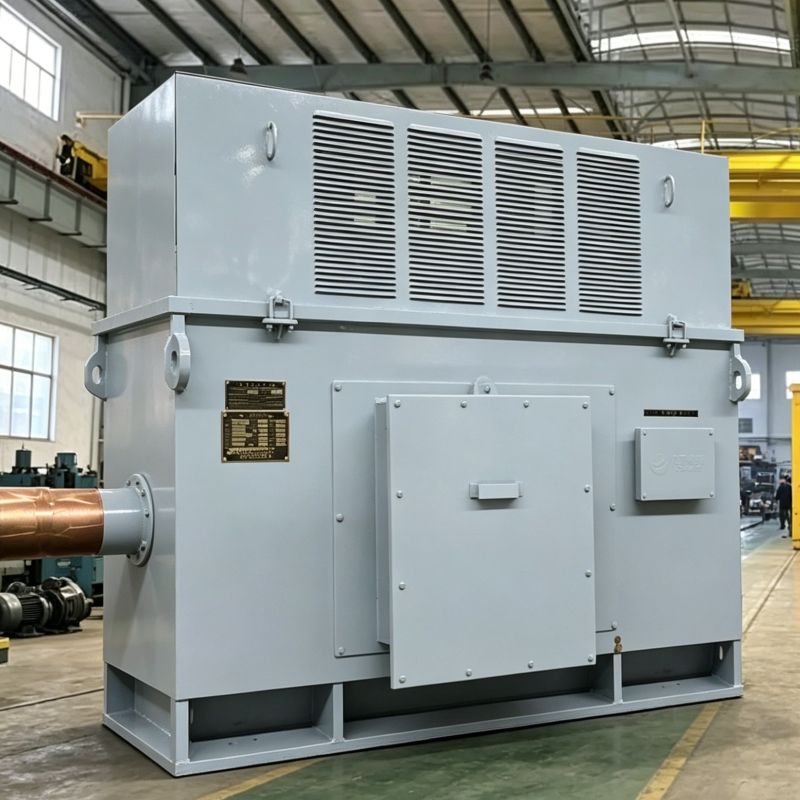

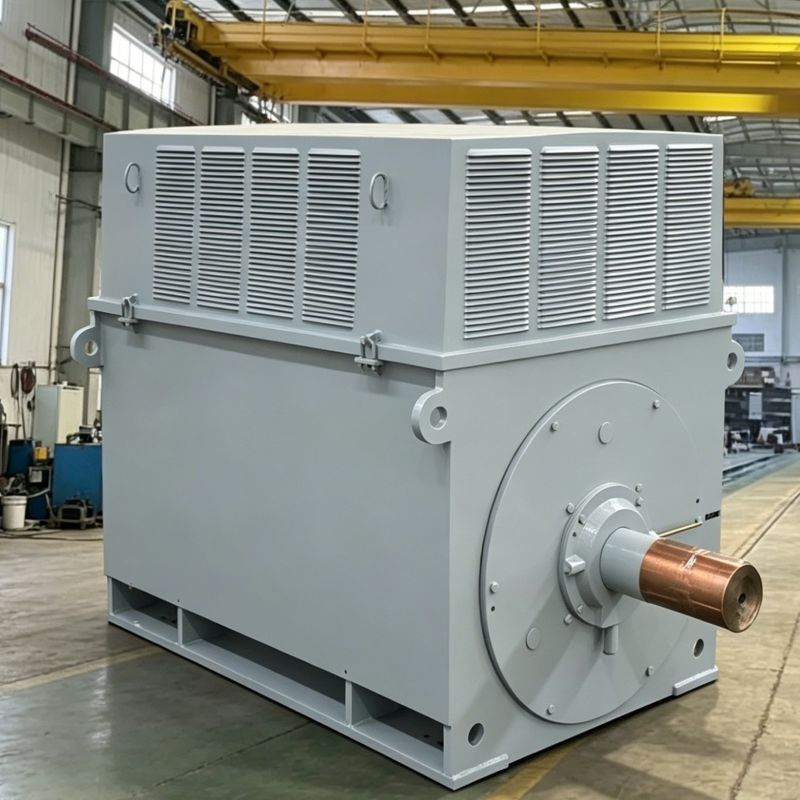

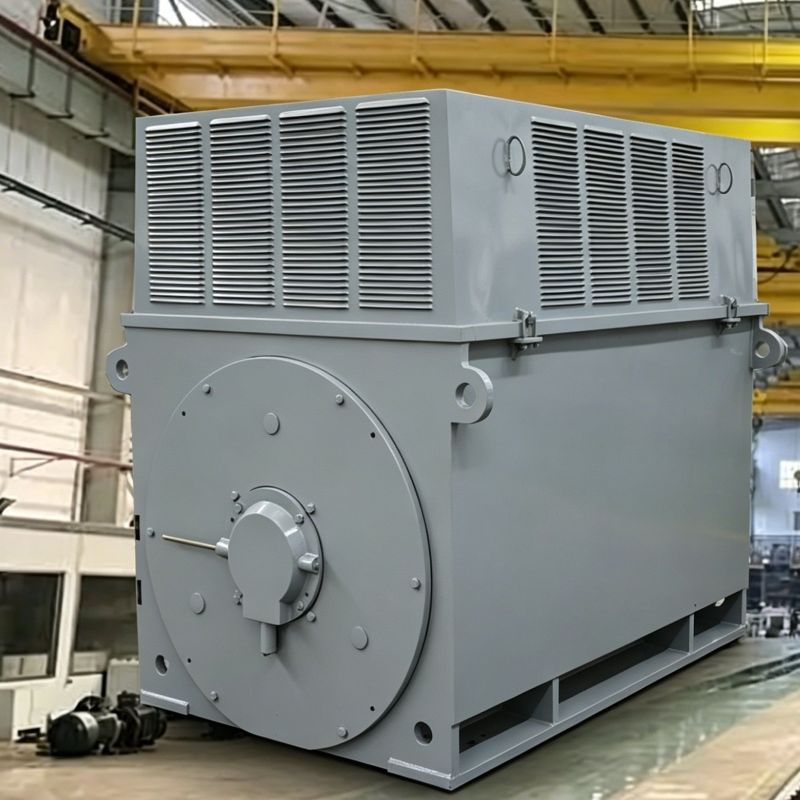

Detailed Photos
![]()
Product Parameters
Frame Size: H355-1120
Rated voltage: 3KV,3.3KV,5.5KV, 6KV, 6.6KV, 10KV, 11KV, 13.8KV
Poles: 2P,4P,6P,8P,10P,12P,14P,16P
Protection Degree: IP23, IPW24
Mounting: IMB3, IMB35, IMB5, IMV1 etc. | Power Range: up to 25000kW
Frequency: 50Hz, 60Hz
Cooling Method: IC01 |
Certifications
![]()
Packaging & Shipping
![]()
Standard seaworthy package for export
Plywood package or wooden fumigation package
Suitable for long distance transportation by sea
Company Profile
![]()
Located in Changsha, central China′s Hunan province, Changli Electric Co., Ltd., a subsidary of Changli Group, which was formally known as Changsha Motor Factory founded in 1946, is a leading electric motor manufacturer among Top 10 industrial electric motor manufacturers in China. With over 70 years′ production experience and research and development capabilities, we can produce a wide range of motors. After years′ development, we have several branches, offices and marketing centers around the country.
With an investment of 1094 million yuan, the company covers an area of 400mu (about 270, 000m2), has over 600 sets of precision production equipment, with annual production capacity of 8,000 MW.
At present, we have over 350 employees, in which engineers and technicians accounting for 18%. With a strong technical research and development team and over 70 years′ manufacturing experience, we can produce various kinds of low voltage motors, medium voltage motors and high voltage motors.
Our testing center is Hunan Medium and Small Sized Motors Quality Supervision Station, an authorized test station of China National Quality Inspection Center, is responsible for the quality supervision and sampling inspection of motor products of various motor manufacturers in Central and Southern China. We can test 40 series of high and low voltage motors.
Our products include standard motors, synchronous/asynchronous motors, high efficiency motors, premium efficiency motors, explosion proof motors, special motors, variable frequency speed regulation motors, ultra-high speed motors, submersible motors, wound rotor slip ring motors, permanent magnet motors, large-sized vertical circulating pump motors, etc.
Quality Control
In-process Inspection/ Quality Control
All the measuring apparatus and instruments are calibrated each year.
Quality control for each item
| Part | Inspection item |
| Coil | 1. Physical and chemical tests for raw materials |
| 2. Coil winding process inspection |
| 3. Winding dimension inspection |
| Iron Core | 1. Physical and chemical test report for silicon steel sheet material |
| 2. Lamination burrs and paint film inspection |
| 3. Dimensional inspection of laminated steel sheet |
| Frame | 1.Cold welding parts conformity certificate |
| 2. Finish machining inspection |
| Rotor | 1. Rotor core lamination inspection |
| 2. Conducting bar welding |
| 3. Check the material, appearance, conductivity and size of the conducting bar end ring |
| 4. Check the fastening of the conducting bars in the slots |
| 5. Dimensional check, including iron core outer diameter |
| 6. Dynamic balance correction |
| Shaft | 1. Raw material , annealing check |
| 2 Finish machining check |
| Stator | 1. Iron core compactness check |
| 2. Check iron core length and section length |
| 3 Inserting winding check |
| 4. Iron consumption check |
| Assembly | 1. Plain bearing size and surface quality check |
| 2. Check the size of the air gap, the coincidence of the axial centerline of the stator and rotor core, the gap of inner fan and windshield |
| 3 Cleaning check inside the motor |
| 4 Shaft center height and installation size check |
| Test | 1. Routine test |
| 2. Type test |
![]()
Test Items
Each motor must be tested before leaving the factory. After the motor is qualified, the motor can be shipped out. Each motor will have a test report.
Routine test items
Winding three-phase DC resistance
Winding insulation resistance to ground
Winding withstand voltage test
No-load current
No-load power
No-load loss
Three-phase no-load current imbalance
Locked rotor current
Locked rotor torque
Maximum torque
Rotation direction
Vibration: horizontal, vertical, axial
Noise
… | Type test items
Full load input power
Full load current
Stator winding loss
Rotor winding loss
Iron loss
Mechanical loss
Other losses
Full-load slip ratio
Stator winding temperature rise
Bearing temperature
Thermal winding insulation resistance
Overload test
Full-load power factor
Efficiency
... |
Warranty Period
Standard warranty: 12 months after commissioning, or 18 months after delivery, whichever comes first.
If you would like to extend the warranty period, it is allowed, please contact us for more details.
